| Applicable Industries | Manufacturing Plant, Retail, Battery lab |
| Showroom Location | None |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | Hot Product 2024 |
| Warranty of core components | 1 Year |
| Core Components | PLC |
| Condition | New |
| Place of Origin | Guangdong, China |
| Warranty | 1 Year |
| Key Selling Points | Easy to Operate |
| Weight (KG) | 150 KG |
| Brand Name | JHN |
| Rated Capacity | 2200W |
| Rated Duty Cycle | 20KHZ |
| Max. Welding Area | 70,120,180,240 square wire harness welding |
| Dimensions | 85*65x65cm |
| Usage | Battery lab ,Battery research |
| Voltage | AC220V/20Hz |
| Power (kw) | 6000W |

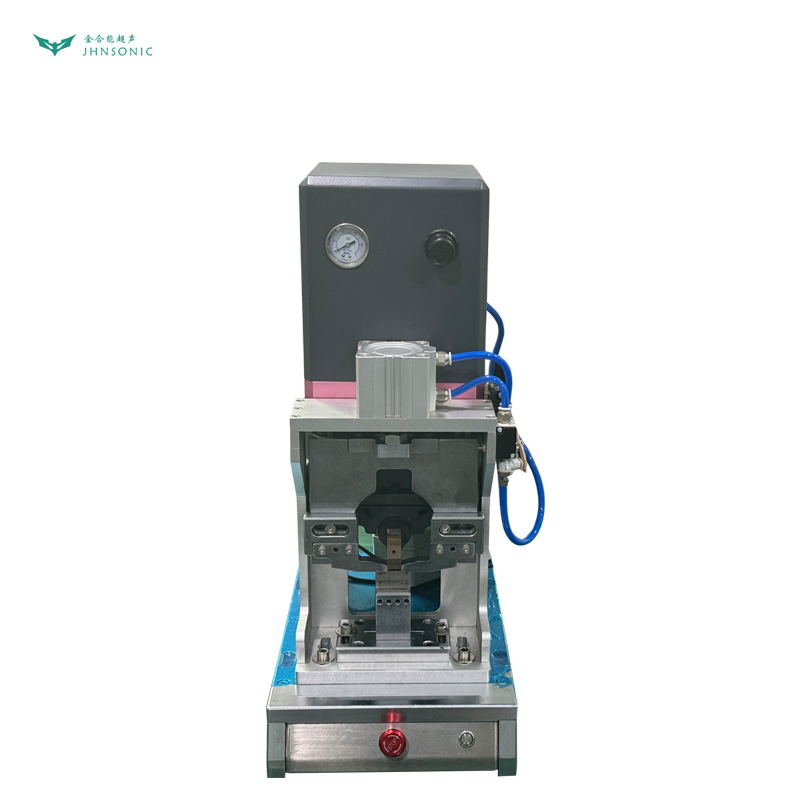

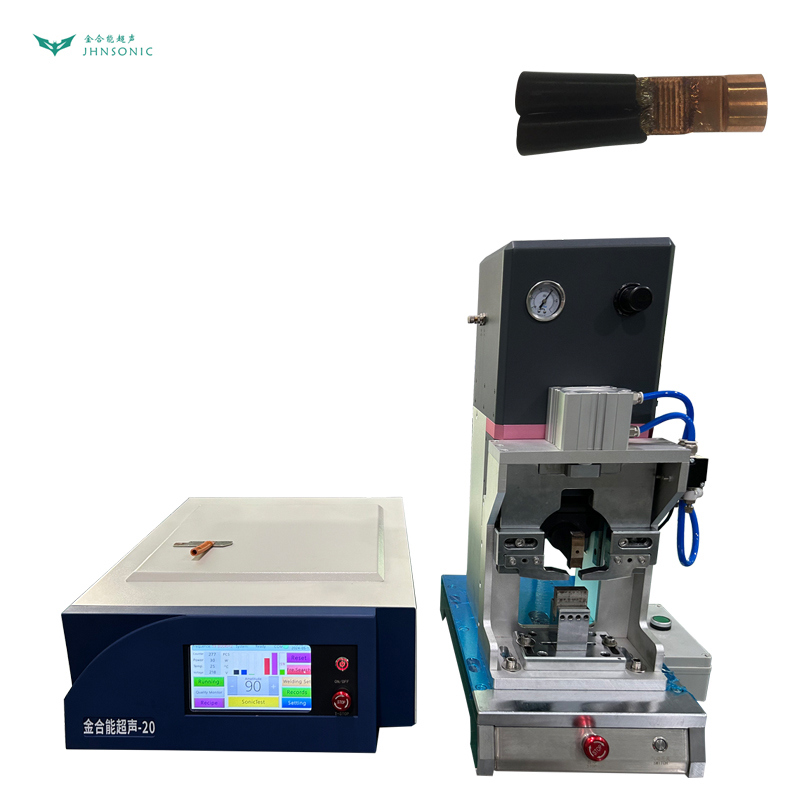

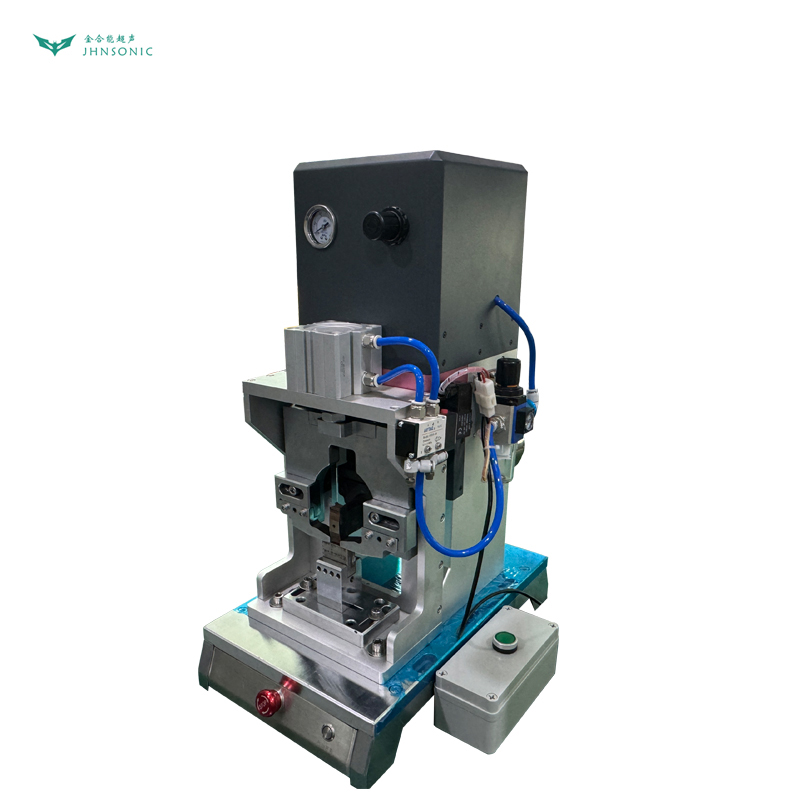

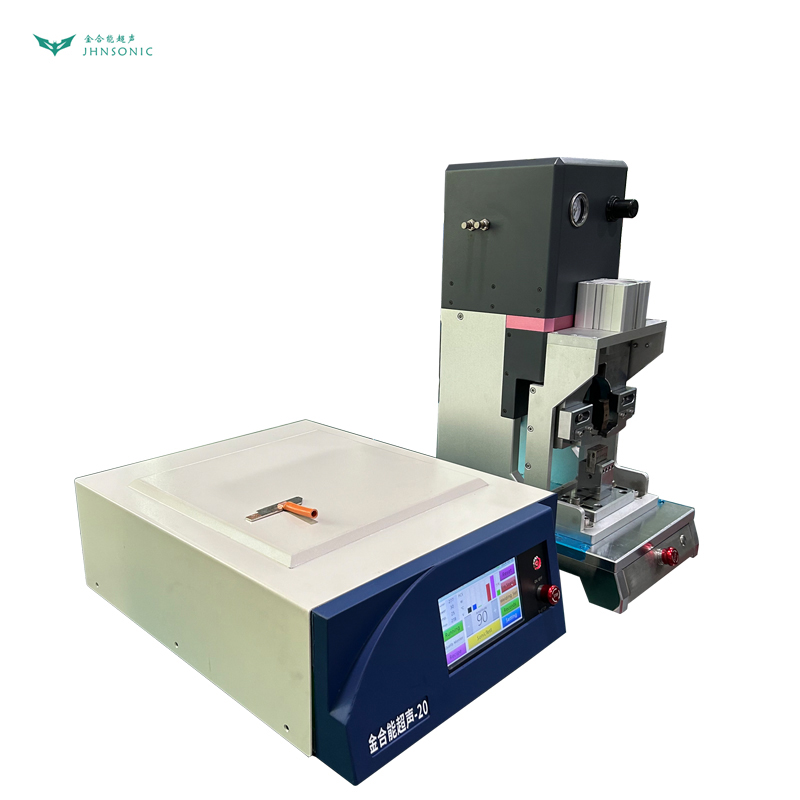

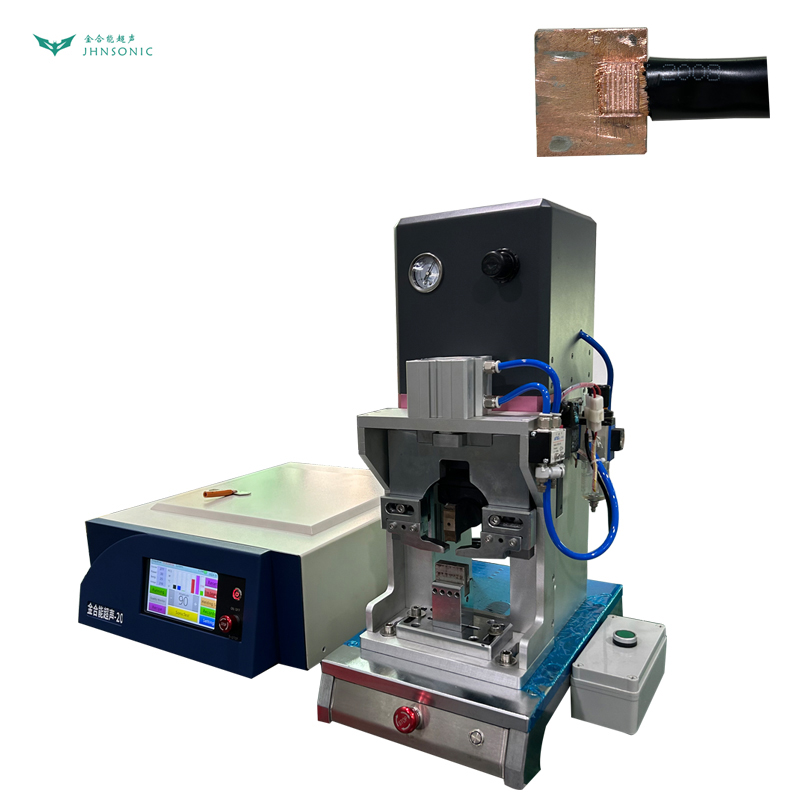

| Product Name | Ultrasonic Metal Spot Welder |
| Input Voltage | 220V, 50Hz |
| Max.Power Consumption | 6000W, 7000W, 8000W |
| Ultrasonic Frequency | 20KHz |
| Net Weight | 100kg |
| Warranty | One Year limited warranty with lifetime support |
Equipment components
The metal welding machine is mainly composed of ultrasonic generator, transducer, mold, pneumatic parts, frame and so on.
Equipment Functional features
1. Intelligent digital circuit, advanced CPU central processing system；
2. With energy mode, time mode multiple intelligent control modes；
3. Ultrasonic frequency automatic tracking；
4. Energy, time, power, a variety of upper and lower limit quality alarm function.
5. DO signal ：welding machine alarm,Ready, IO signal output during ultrasonic sending
6. DI signal：EMERGENCY STOP, Start welding.
7. 485 communication protocol, Data receiving and uploading
| Product name | Ultrasonic metal welding machine |
| Product No. | JHN2060 |
| Welding area | 70, 120, 180, 240 square wire harness welding area, 2.5mm sheet copper |
| Air cylinder | Built-in cylinder |
| Head color | Black + silver |
| Welding materials | Power cell, copper, aluminum, palladium |
| Controller size | 65cm(L)x50cm(W)x25cm(H) |
| Welder size | 65cm(L)x35cmW)x65cm(H) |
| Total size | 85cm(L)x65cmW)x65cm(H) |
| Net Weight | 100kg |
| Gross weight | 150kg |
